Target : Is to create an LED light fade effect when you press a button
How : A switch is connected to pin 3 of the Arduino, the program detect when the user push the switch. a PWM is used to modulate the output signal N°9

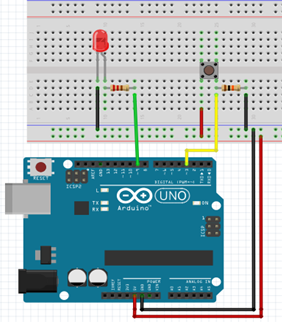

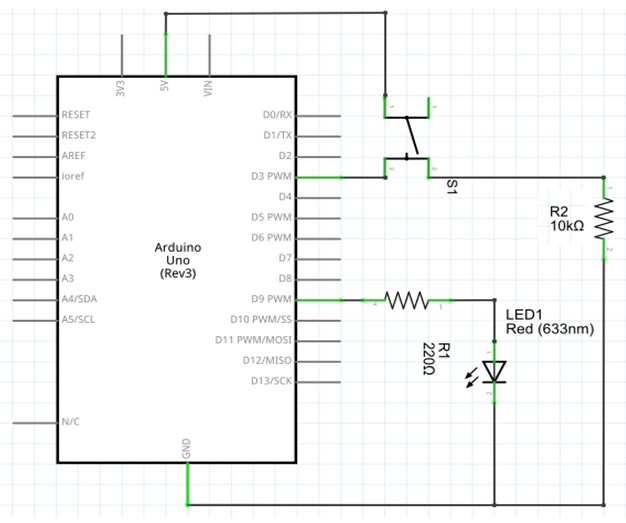

Wiring : same wiring for the LED. The resistor 10K is used to set to low state the input 13 when the button is open

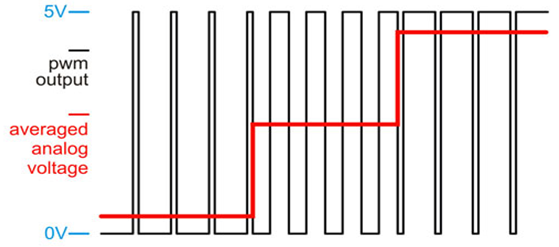

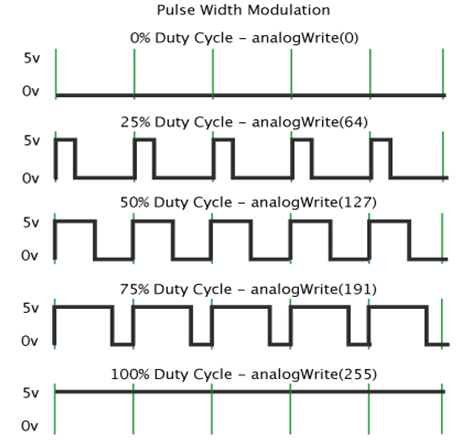

Technology : PWM, is
a technique for getting analog results with digital means. Digital control
is used to create a square wave, a signal switched between on and off. This
on-off pattern can simulate voltages in between full on (5 Volts) and off
(0 Volts) by changing the portion of the time the signal spends on versus
the time that the signal spends off.

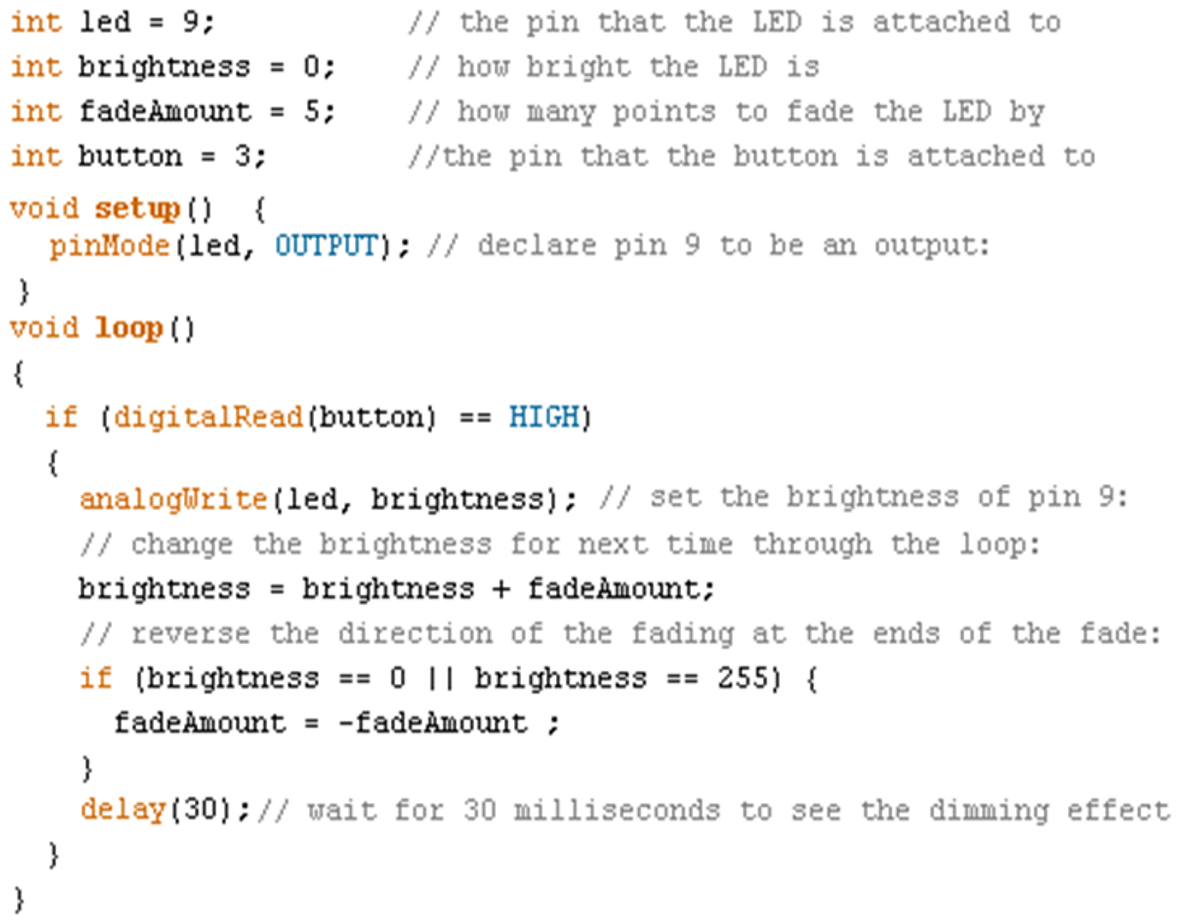

Soft : pinMode(pin,OUTPUT)
: Configures the specified pin to output. digitalRead(pin)
: Reads the value from a specified
digital pin, return HIGH or LOW.
analogWrite(pin,value):Writes
an analog value
(PWM wave) to a pin
Components :Resistor
220Ohms, 10KOhms
switch, led,
