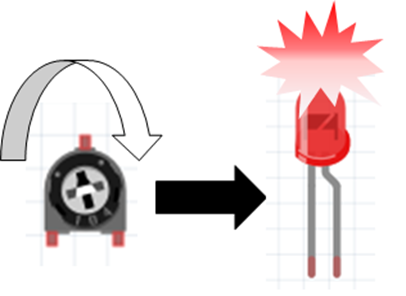

Target : Vary the brightness of an LED from a potentiometer

How : make a compilation of previous Class

Wiring : build the ectronic diagram with Freitzing and electronic assemble on breadboard

Technology : The Arduino reads the voltage value of the potentiometer and generates a PWM signal to the LED

Soft : If necessary, prepare your program on paper (main function type required variable block diagram ....)
Write your structured program and how well commented

Components to do list an inputs / outputs and components that you need

Proposal : you can use a Serial.print function to verify the state of variable.
